Description
ADVANTAGES OF MZF-H PORTABLE UV LASER MARKING MACHINE
High productivity
Using online high-speed non-stop laser marking, high production efficiency, can work under static and high-speed flow of the production line
Cost-effective
The whole machine is small, flexible, convenient, powerful, and not limited by the use of space
Can be disassembled at will
Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will
High quality light source
Using advanced fiber lasers, the output beam quality is good and the reliability is high
High Precision Marking
Achieve precise and accurate markings with the MZF-H Portable UV Laser Marking Machine. With its high beam quality and excellent spot mode, it can mark on a variety of materials with fine details and intricate designs. From barcodes to logos, it can produce sharp and permanent markings with ease.
Portability and Versatility
The MZF-H Portable UV Laser Marking Machine is a lightweight and compact device that can be easily transported to different locations. Its portability allows for marking on-site or in the field, making it an ideal tool for various industries. Whether you’re marking on metals, plastics, or ceramics, this Compact UV Marking Device is versatile enough to handle a wide range of materials.
User-Friendly Design
The MZF-H Portable UV Laser Marking Machine is designed with user-friendliness in mind. Its intuitive interface and easy-to-use software allow for quick and hassle-free operation. With its low maintenance requirements and simple set-up process, this High-Precision Marking Tool is perfect for businesses of any size.
| Model | MZF-3H | MZF-5H | MZF-10H | |
|---|---|---|---|---|
| Laser parameters | Laser model | SEAL-355-3 | SEAL-355-5 | SEAL-355-10S |
| Output Power | 3W | 5W | 10W | |
| Beam quality M2 | ＜1.2 | |||
| Laser wavelength | 355 nm | |||
| Pulse frequency | 20-150 kHz | 40-300 kHz | ||
| Exit beam diameter | 0.7±0.1 mm | 0.8±0.1 mm | ||
| output power stability | 3% | |||
| Design life | About 20,000 working hours (not service life) | |||
| Optical properties | Marking range | 100~160mm (range optional) | ||
| Engraving Depth | ≤1mm (depending on power and time) | |||
| Engraving speed | ≤10000mm/s | |||
| Repeatability | ±0.002 | |||
| Minimum Marker Line Width | 0. 01mm | |||
| Minimum character height | 0.03mm | |||
| Use environment | cooling method | water cooling | ||
| System power supply | 500W / 220V / 50Hz（Can be connected to 110V） | |||
| temperature humidity | 5~35°，30% RH 85% | |||
| Oil mist, condensation | not allowed | |||
| Other parameters | operating system | Windows operating system | ||
| file format | All fonts/typefaces of WINDOWS operating system font library (standard USB input) | |||

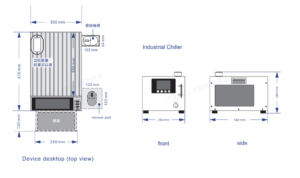

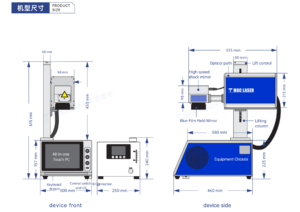

| Dimensions | Marking machine 300X460X615mm water tank 250X340X24mm | |||
| Total Weight | about 30kg | |||
