Description

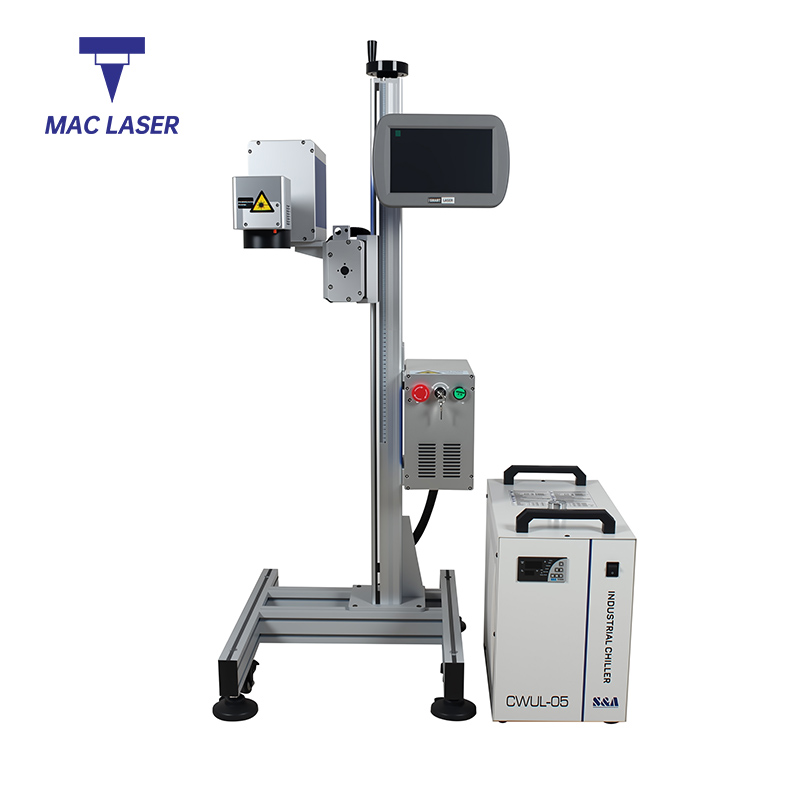

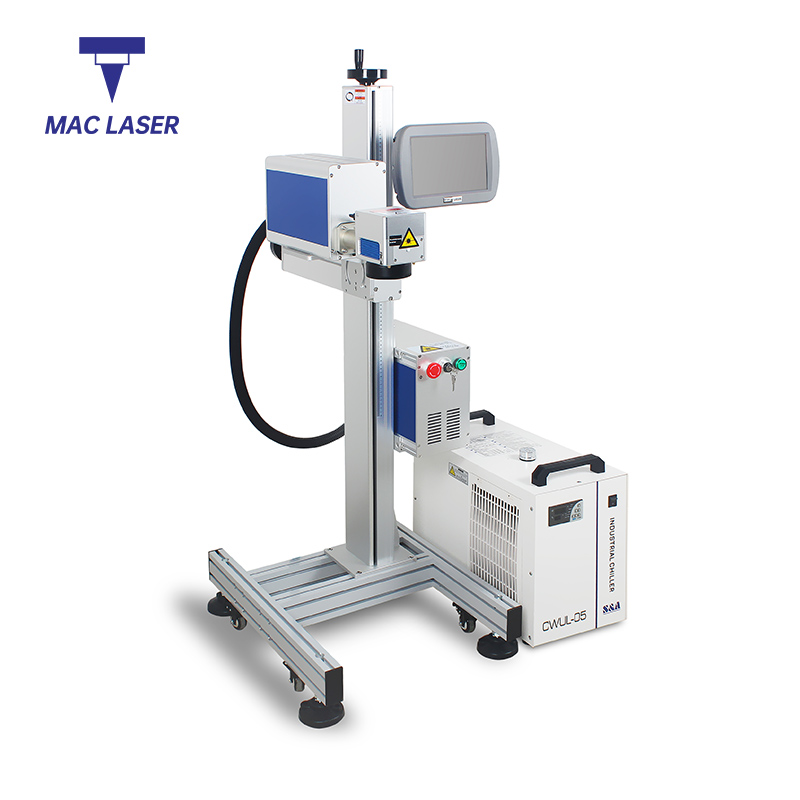

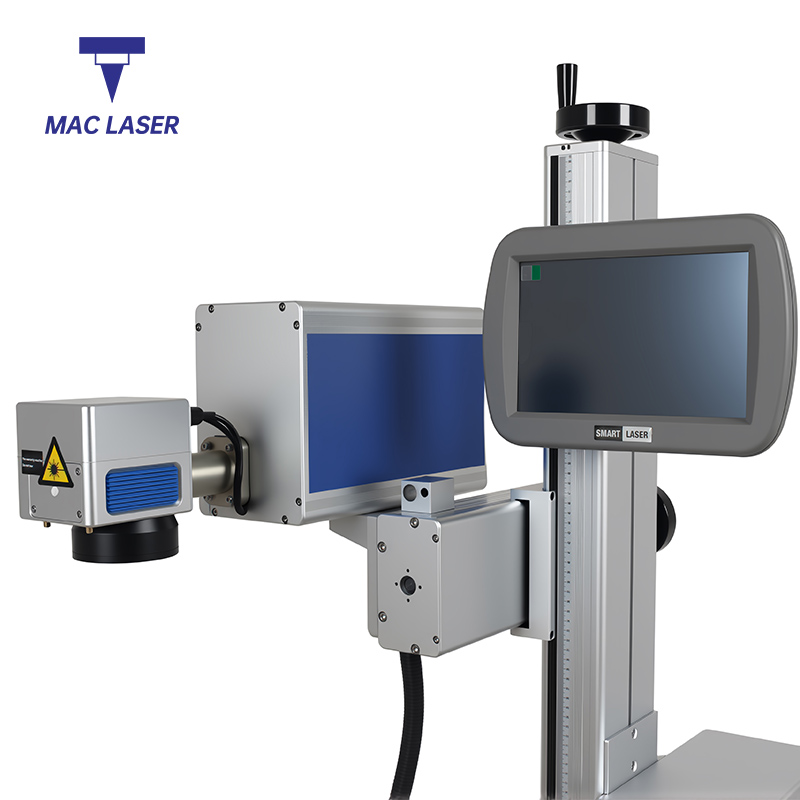

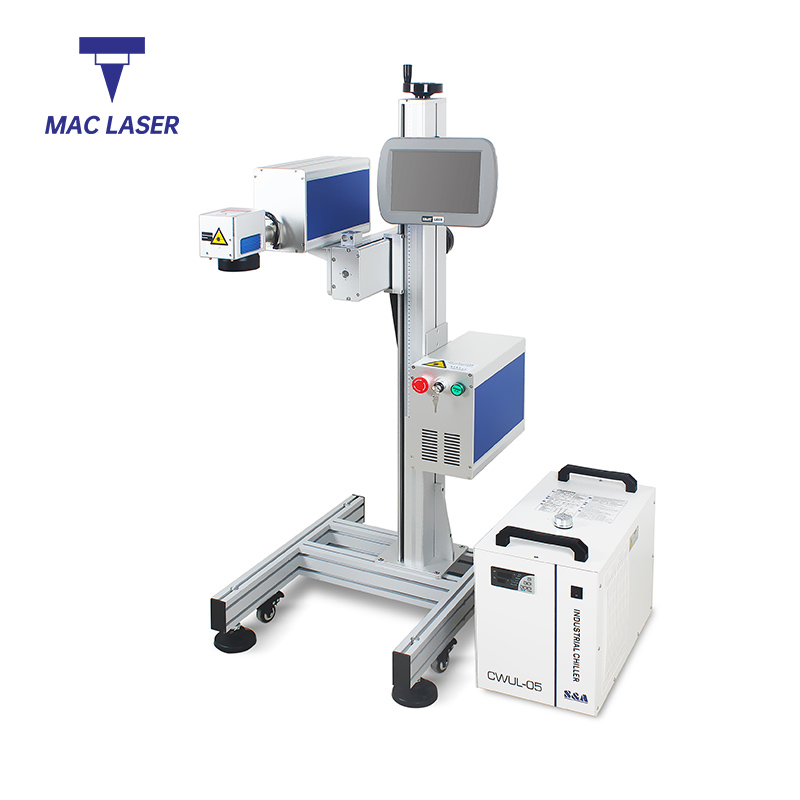

ADVANTAGES OF UV-R SERIAL FLYING UV LASER MARKING MACHINE
High productivity
Using online high-speed non-stop laser marking, high production efficiency, can work under static and high-speed flow of the production line
Cost-effective
The whole machine is small, flexible, convenient, powerful, and not limited by the use of space
Can be disassembled at will
Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will
High quality light source
Using advanced fiber lasers, the output beam quality is good and the reliability is high
Fast and Accurate Laser Marking
With its advanced technology and precise control system, the UV-R Serial UV Flying Laser Marking Machine is capable of producing high-quality laser marking at an incredible speed. Its flying marking mode enables the machine to work continuously, even while the product is in motion. With an accuracy of up to 0.001mm, this machine can produce complex designs and patterns on a wide range of materials with ease.
Versatile and Durable Machine
The UV-R Serial UV Flying Laser Marking Machine is versatile and can be used to mark a wide range of materials, including metals, plastics, glass, and ceramics. Its durable construction ensures that it can withstand heavy usage and still deliver consistent results. The machine is also easy to maintain, reducing downtime and saving you money in the long run.
Cost-Effective and Eco-Friendly Solution
The UV-R Serial UV Flying Laser Marking Machine is a cost-effective solution for businesses of all sizes. Its fast and efficient operation means that you can produce more in less time, reducing labor costs and increasing productivity. Additionally, the machine’s eco-friendly design means that it produces no harmful emissions or waste, making it an environmentally conscious choice.
Product Parameters
| Model | UV300R | UV500R | |
|---|---|---|---|
| Laser parameters | Laser source model | S9-F-3 | S9-F-5 |
| Output Power | 3W | 5W | |
| Beam quality M2 | ＜1.2 | ||
| Laser wavelength | 355 nm | ||
| Pulse frequency | 10-200 kHz | ||
| Output beam diameter | 0.8±0.2 mm | ||
| Output power stability | <5 | ||
| Working life | About 20,000 hours | ||
| Optical properties | Marking range | 100~300mm (range optional) | |
| Engraving depth | ≤ 1mm (depending on power and time) | ||
| Engraving speed | ≤ 10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Minimum marking line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling way | External water cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature humidity | 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Flying marking system | |
| File format | The software supports text, QR code, barcode, serial number, graphics and other marking content | ||

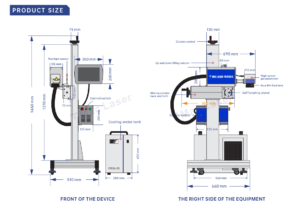

| Dimensions | 660X510X1460 mm | ||
| Packing size | Host: 850X510X280mm Water tank: 680X430X57mm Column: 1350X350X280mm | ||
| Total Weight | Including cooling water tank about 89kg | ||
