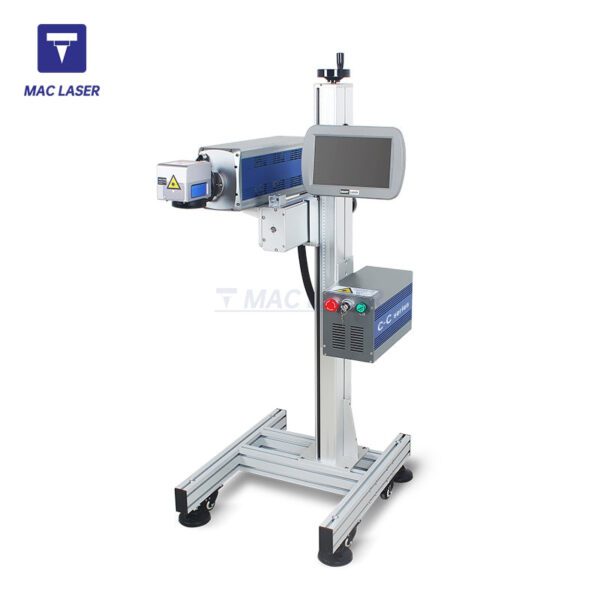

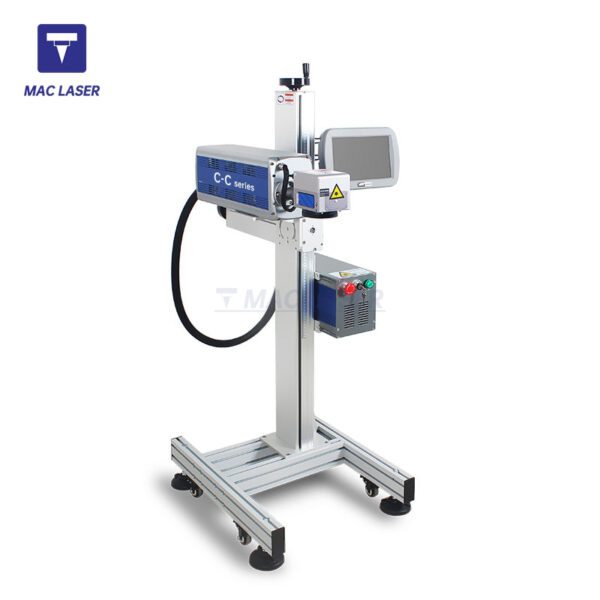

C-C series CO2 flying laser marking machine (COHENRENT laser source)

The C-C series CO2 flying laser marking machine is a high-speed continuous marking model designed to improve productivity. It uses COHENRENT industrial-grade metal RF CO2 laser tube. It has good optical modes and fast processing efficiency. The marking speed of the production line is up to 200m/min ( Single-line 2MM-high numbers and letters), it provides high-speed, high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries..

The C-C series uses COHENRENT CO2 radio frequency laser source.



Description

Product Description



The C-C series CO2 flying laser marking machine is a high-speed continuous marking model designed to improve productivity. It uses COHENRENT industrial-grade metal RF CO2 laser tube. It has good optical modes and fast processing efficiency. The marking speed of the production line is up to 200m/min ( Single-line 2MM-high numbers and letters), it provides high-speed, high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.



The CO2 flying laser marking machine is suitable for online marking of most non-metallic materials, such as paper packaging, film packaging, coated metal, plexiglass, resin plastic, bamboo and wooden products, PVC products, etc. It is widely used in food and beverage packaging, alcohol, dairy products, clothing accessories, leather, electronic components, medicine, personal care products, tobacco, chemical building materials,production and expiration date, batch number, shift, manufacturer name and logo, etc.



>>  Marking speed up to 200 meters per minute

This is the industry’s fastest marking laser coding system, with a marking speed of up to 200 m/min (single line of 2MM-high numbers and letters), which can be used in medium-speed or high-speed production lines.

>>  Reliable and durable CO2 laser source

Using COHENRENT CO2 metal radio frequency laser source, the laser power density is uniform, the output light power is stable, there is no light leakage, anti-interference and there will be no shadows and virtual disconnection on special materials.

>>  Compact design and flexible configuration

This model uses compact laser printer marking head to achieve simple integration to reduce installation costs and improve positioning flexibility .

>>  Flexible installation way, convenient installation position adjustment

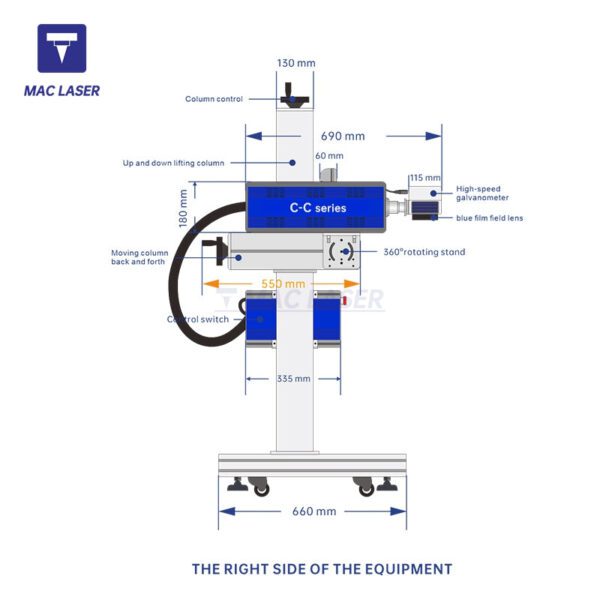

The flying model is specially designed for high-speed production lines, which can be flexibly combined with production lines for installation and use. The frame can be moved up and down and left and right to adjust, the marking head can also be rotated 360° for marking.



Product Parameter

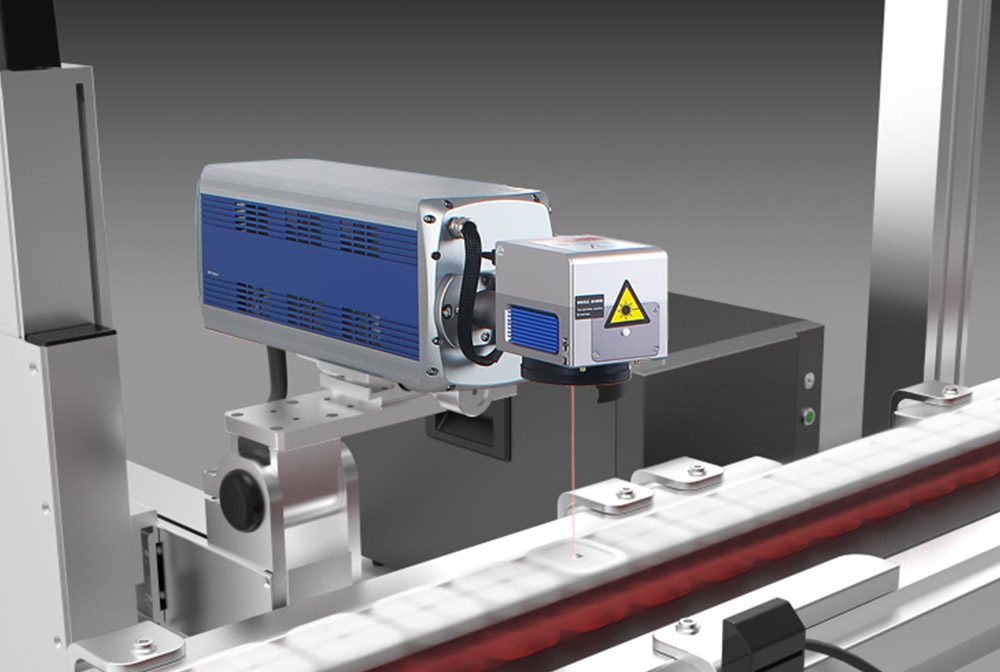

CO2 Use pictures

Model series C-C series (American COHENRENT laser source)
Model C300C C600C
Laser source model CH-C30 CH-C55
Output Power 40W 70W
Beam quality M² ≤1.2 ≤1.2
Laser wavelength 10.6 um 10.6 um
Pulse frequency 0-25 kHz 0-200 kHz
Exit beam diameter 1.8±0.2 mm 1.8±0.2 mm
Output power stability ±5% ±5%
Working life About 20,000 working hours (non-lifetime)
Marking range 100~300mm (range optional)
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Minimum marking line width 0. 1mm
Minimum character height 0.15mm
Cooling way Standard built-in air cooling (water cooling can be customized)
System power supply 500W / 220V / 50Hz (110V can be connected)
Temperature humidity 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range
Oil mist, condensation Not allowed
Operating system Flying laser marking system
File format The software supports text, QR code, barcode, serial number, graphics and other marking content

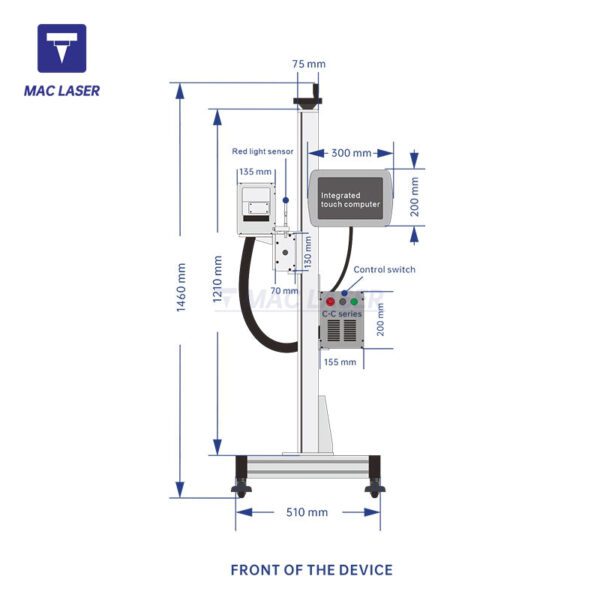

Dimension 660X510X1460 mm
Packing dimension Host: 980X600X370 mm    Column: 1350X350X280 mm
Total Weight About 63kg



Scope of application

CO2 Scope of application

Sample pictures

CO2 Sample pictures
