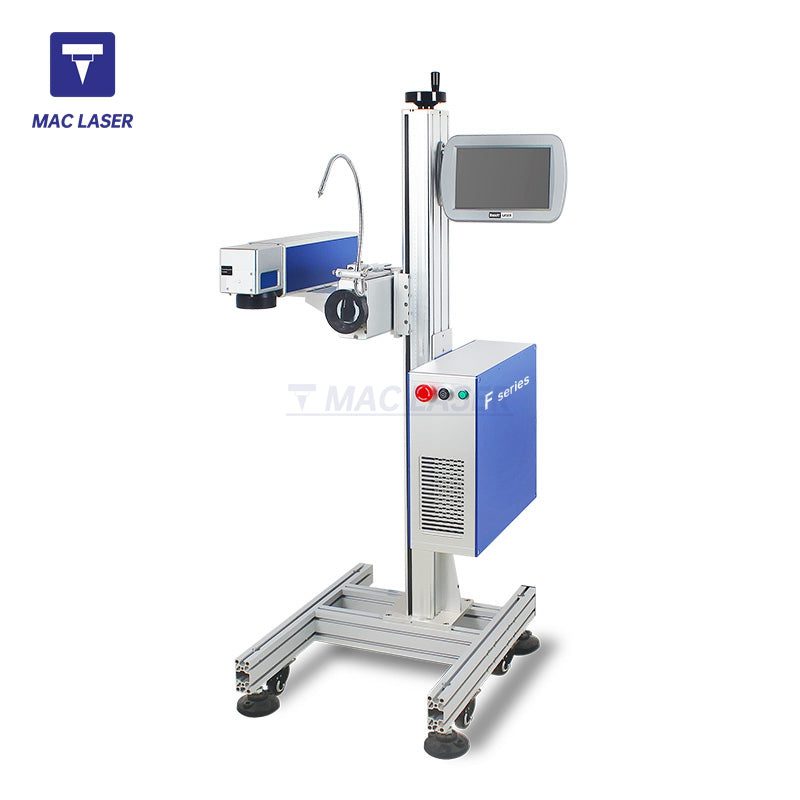

F series fiber flying laser marking machine (Germany IPG laser source)

The F series fiber flying laser printer is a high-speed continuous marking machine designed to improve productivity. It adopts Germany IPG industrial-grade high-performance laser source which are with stable performance, fast processing efficiency and marking speed on the production line. It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.

The F series uses the nanosecond pulsed fiber laser of German IPG laser source

Description

Product Description



The F series fiber flying laser printer is a high-speed continuous marking machine designed to improve productivity. It adopts Germany IPG industrial-grade high-performance laser source which are with stable performance, fast processing efficiency and marking speed on the production line. It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.



Fiber laser online marking machine is suitable for online marking of most metal materials and some non-metallic materials with surface treatment, such as metal products, PVC, HDPE, aluminum film, rubber and plastics. It is widely used in the production of personal care products, food and beverage packaging, wine, dairy products, electronic components, chemical building materials and other fields, and the expiration date, batch number, shift, manufacturer name and logo and other graphics and text markings.



>>  Marking speed up to 200 meters per minute

This is the industry’s fastest marking laser coding system, with a marking speed of up to 200 m/min (single line of 2MM-high numbers and letters), which can be used in medium-speed or high-speed production lines.

>>  Reliable and durable fiber laser source

It adopts Germany IPG high-quality fiber laser light source, which is in uniform laser power density and highly focused laser beam Achieved a better logo contrast and the working life of the laser can reach 100,000 hours .

>>  Compact design and flexible configuration

This model uses compact laser printer marking head to achieve simple integration to reduce installation costs and improve positioning flexibility .

>>  Flexible installation way, convenient installation position adjustment

The flying model is specially designed for high-speed production lines, which can be flexibly combined with production lines for installation and use. The frame can be moved up and down and left and right to adjust, the marking head can also be rotated 360° for marking.



Product Parameter

Fiber Use pictures

Model serials F serial(Germany IPG laser source)
Model F2000 F3000 F5000 F9800
Laser source model YLP-V2-20 YLP-V2-30 YLP-V2-50 YLP-V2-100
Output Power 20W 30W 50W 100W
Beam quality M² ≤2 ≤2 ≤2 ≤2
Pulse repetition frequency 2-200 kHz 5-200 kHz
Laser wavelength 1064±10nm
Output power stability <5%
Working life About 100,000 working hours (non-lifetime)
Marking range 100~300mm (range optional)
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Minimum marking line width 0. 1mm
Minimum character height 0.15mm
Cooling way Built-in air cooling
System power supply 500W / 220V / 50Hz (110V can be connected)
Temperature humidity 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range
Oil mist condensation Not allowed
Operating system Fly control system
File format The software supports text, QR code, barcode, serial number, graphics and other marking content
Dimensions 660X510X1460 mm
Packing size Host: 790X740X350mm   Column: 1350X350X280mm
Total Weight About 66kg



Scope of application

Fiber Sample pictures

Sample pictures

Fiber Scope of application
