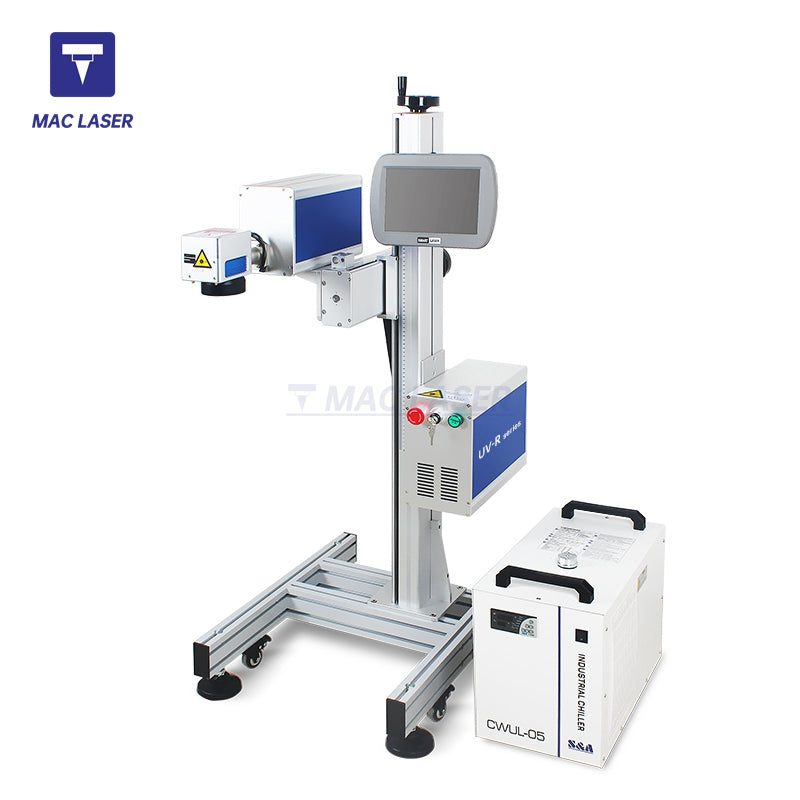

UV-R Serial UV Flying Laser Marking Machine

The UV-R Serial UV Flying Laser Marking Machine is a high-tech equipment that provides fast and efficient laser marking results. Its advanced technology and precise control system allow for accurate laser marking at an incredible speed, making it an ideal choice for a wide range of industries. The machine is versatile, durable, and eco-friendly, providing a cost-effective solution for businesses of all sizes.

Description

Edit

ADVANTAGES OF UV-R SERIAL FLYING UV LASER MARKING MACHINE

High productivity

Using online high-speed non-stop laser marking, high production efficiency, can work under static and high-speed flow of the production line

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Fast and Accurate Laser Marking

With its advanced technology and precise control system, the UV-R Serial UV Flying Laser Marking Machine is capable of producing high-quality laser marking at an incredible speed. Its flying marking mode enables the machine to work continuously, even while the product is in motion. With an accuracy of up to 0.001mm, this machine can produce complex designs and patterns on a wide range of materials with ease.

Versatile and Durable Machine

The UV-R Serial UV Flying Laser Marking Machine is versatile and can be used to mark a wide range of materials, including metals, plastics, glass, and ceramics. Its durable construction ensures that it can withstand heavy usage and still deliver consistent results. The machine is also easy to maintain, reducing downtime and saving you money in the long run.

Cost-Effective and Eco-Friendly Solution

The UV-R Serial UV Flying Laser Marking Machine is a cost-effective solution for businesses of all sizes. Its fast and efficient operation means that you can produce more in less time, reducing labor costs and increasing productivity. Additionally, the machine’s eco-friendly design means that it produces no harmful emissions or waste, making it an environmentally conscious choice.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

ModelUV300RUV500R
Laser parametersLaser source modelS9-F-3S9-F-5
Output Power3W5W
Beam quality M2<1.2
Laser wavelength355 nm
Pulse frequency10-200 kHz
Output beam diameter0.8±0.2 mm
Output power stability<5
Working lifeAbout 20,000 hours
Optical propertiesMarking range100~300mm (range optional)
Engraving depth≤ 1mm (depending on power and time)
Engraving speed≤ 10000mm/s
Repeat accuracy±0.002
Minimum marking line width0. 1mm
Minimum character height0.15mm
Use environmentCooling wayExternal water cooling
System power supply500W / 220V / 50Hz (110V can be connected)
Temperature humidity0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
Oil mist, condensationNot allowed
Other parametersOperating systemFlying marking system
File formatThe software supports text, QR code, barcode, serial number, graphics and other marking content

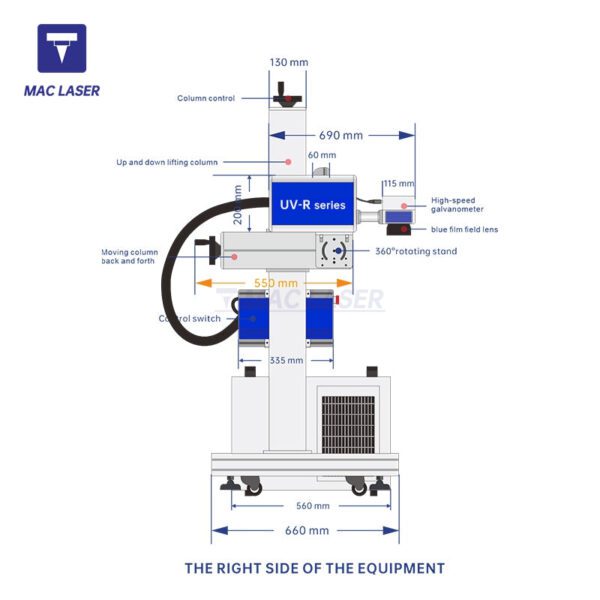

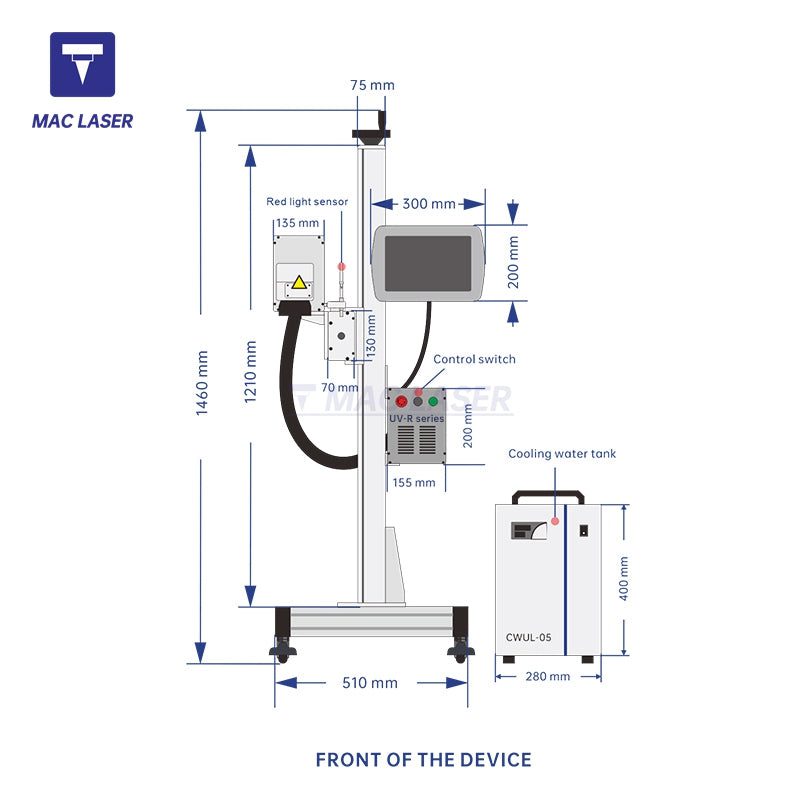

Dimensions660X510X1460 mm
Packing sizeHost: 850X510X280mm Water tank: 680X430X57mm Column: 1350X350X280mm
Total WeightIncluding cooling water tank about 89kg
