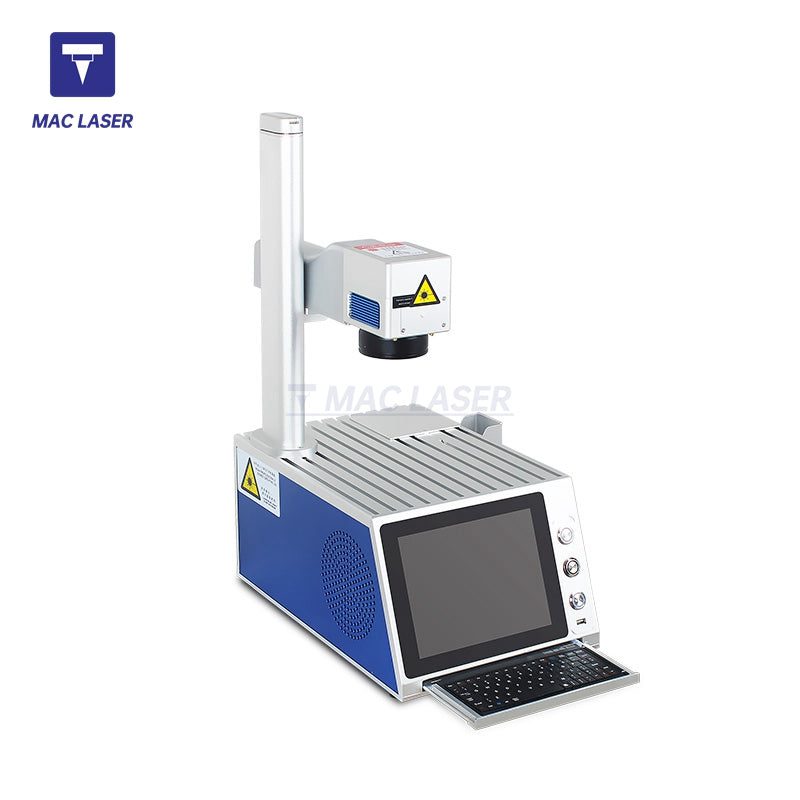

MZF-B MINI Fiber Laser Marking Machine

Increase your marking efficiency with the MZF-B MINI Fiber Laser Marking Machine. Achieve precise markings on a variety of materials with its advanced laser technology. Easy to use and maintain, this compact marking machine is perfect for businesses of all sizes.



Description

Edit

INCREASE YOUR MARKING EFFICIENCY WITH MZF-B MINI

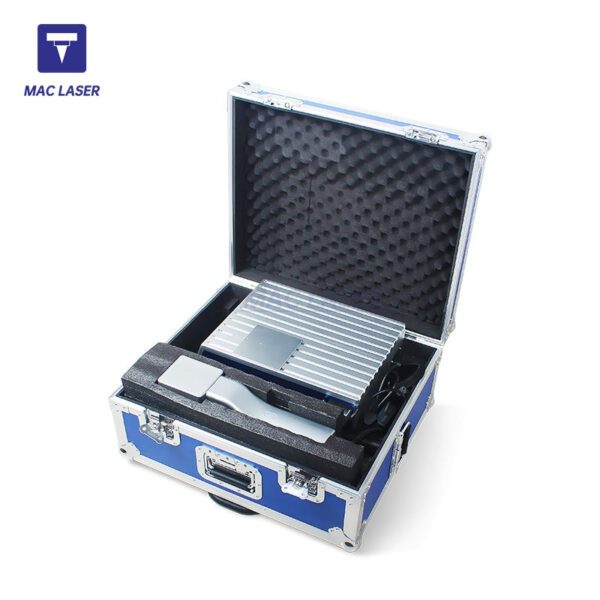

100% portable

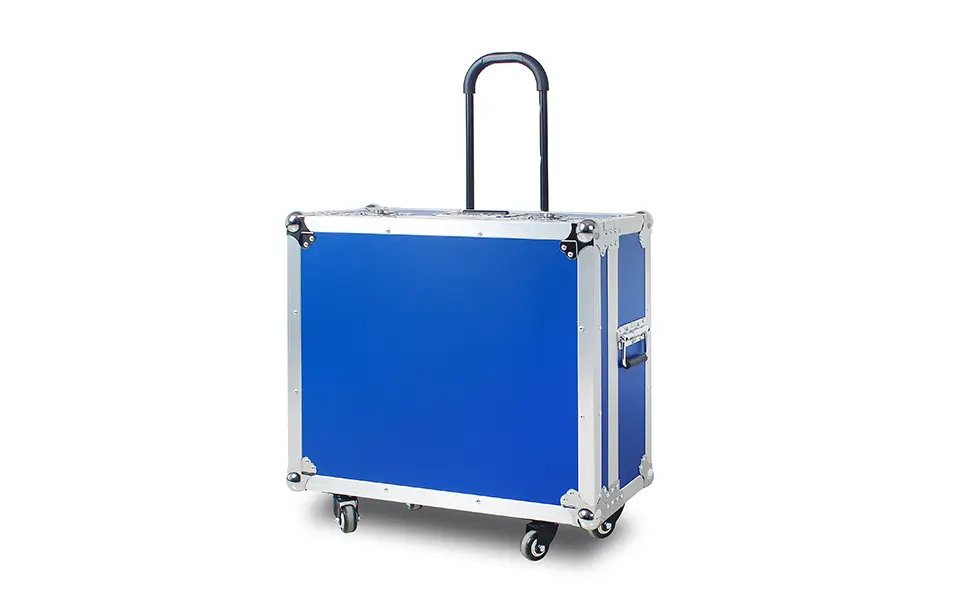

Transport box, thickened and shockproof, handle design, more convenient transportation

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

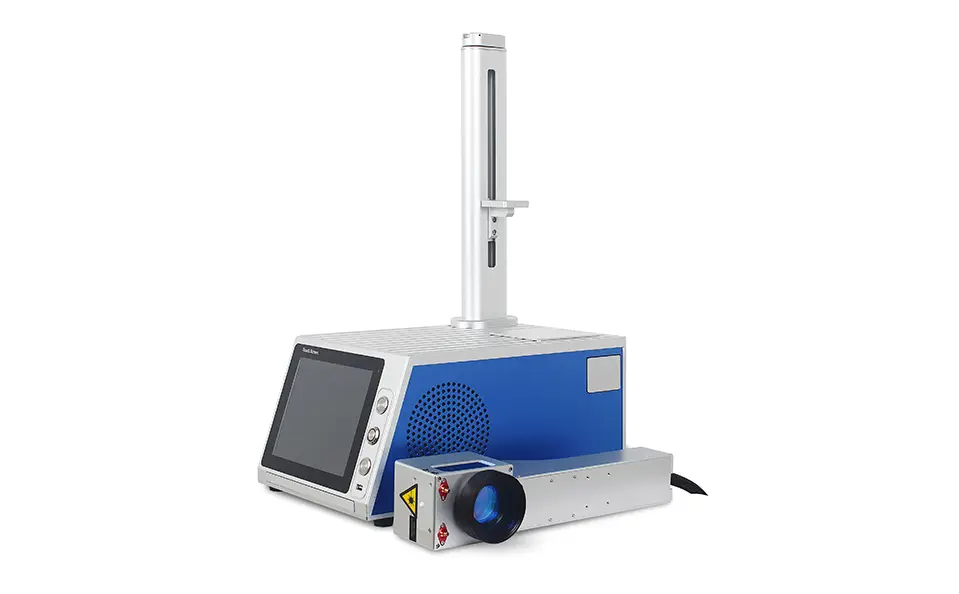

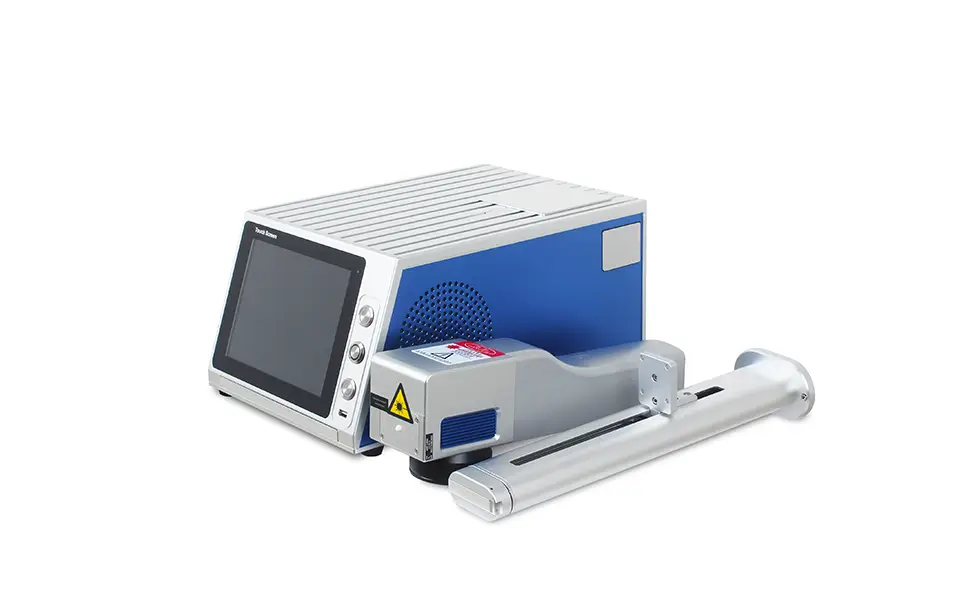

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Precision Marking

With the MZF-B MINI Fiber Laser Marking Machine, you can achieve precise and accurate markings on a variety of materials. This laser marking machine uses fiber optic technology, which allows for extremely fine lines and intricate designs. The high precision of this machine means that you can mark even the smallest of parts without any errors or defects. Whether you’re marking metal, or other materials, this compact laser marking machine is the perfect tool for achieving precise and professional markings.

Speed and Efficiency

The MZF-B MINI Fiber Laser Marking Machine is not only precise but also incredibly fast and efficient. With its advanced laser technology, this machine can mark materials at a speed that’s up to 10 times faster than traditional marking methods. This means you can complete marking jobs in a fraction of the time it would take with other machines, which translates to increased productivity and profitability for your business. Whether you’re running a small shop or a large production facility, this marking machine can help you streamline your marking process and get more done in less time.

Easy to Use and Maintain

One of the great benefits of the MZF-B MINI Fiber Laser Marking Machine is that it’s incredibly easy to use and maintain. The machine’s user-friendly interface and intuitive controls make it easy for anyone to operate, regardless of their experience level. Additionally, the machine requires very little maintenance, which means you can spend less time on upkeep and more time on production. With its compact design and minimal maintenance requirements, it is a great choice for businesses of all sizes.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

ModelMZF-20BMZF-30B
Laser parameterLaser source modelMFP-20X/20QSMFP-30X/30QS
Outputpower18.5W30W
Beam quality M2≤1.4≤1.4
Pulse repetition frequency27-60 kHz30-60 kHz
Laser wavelength1064±5
Output power stability<3%
Working lifeAbout 100,000 working hours (non-service life)
Optical propertiesMarking area100~150mm (range optional)
Engraving depth≤1mm (depending on power and time)
Engraving speed≤10000mm/s
Repeat accuracy±0.002
Mininum line width0. 1mm
Minimum character height0.15mm
Use environmentCooling methodBuilt-in air cooling
System power supply500W / 220V / 50Hz (110V can be connected)
Temperature, humidity0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range
Oil mist, condensationNot allowed
Other parametersOperating systemWindows operating system
File formatAll fonts/types of WINDOWS operating system font library (standard USB input)
Dimensions460X300X683 mm
Packing size550X440X690 mm
Machine weightAbout 25kg
Edit

INDUSTRIAL MARKING APPLICATIONS

The MZF-B series intelligent laser marking machine belongs to the desktop fifiber laser marking equipment. It

is a special model specially developed by Mac Laser for the needs of simple, compact, flflexible and

convenient equipment. The equipment is extremely cost-effective, It adopts high-quality fifiber laser source,

high-stability galvanometer system, hidden keyboard and mouse design, it can easily meet most common

laser marking applications.

The MZF-B series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal

materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS,

PVC, and PC+ABS.

ALUMINUM Marking

Feel free to hold your device and laser mark auto parts, tent frames, beach chairs, foil balls, computer cases, and anything you can identify as aluminum.

MORE LASER PRODUCT OPTIONS

Q8 Model Smart Handheld Laser Marking Machine

The Q8 handheld smart laser machine is a portable, battery-powered and fully autonomous marking machine.

MZF-A Series Split Intelligent Fiber Laser Marking Machine

This model has a simple structure and a modular design, which has better stability and longer life.

MZF-D MINI Laser Marking Machine

This model has the advantages of economical and affordable, high cost performance (computer is not included, you need to configure your own computer to use), the whole machine is small and easy to carry.
