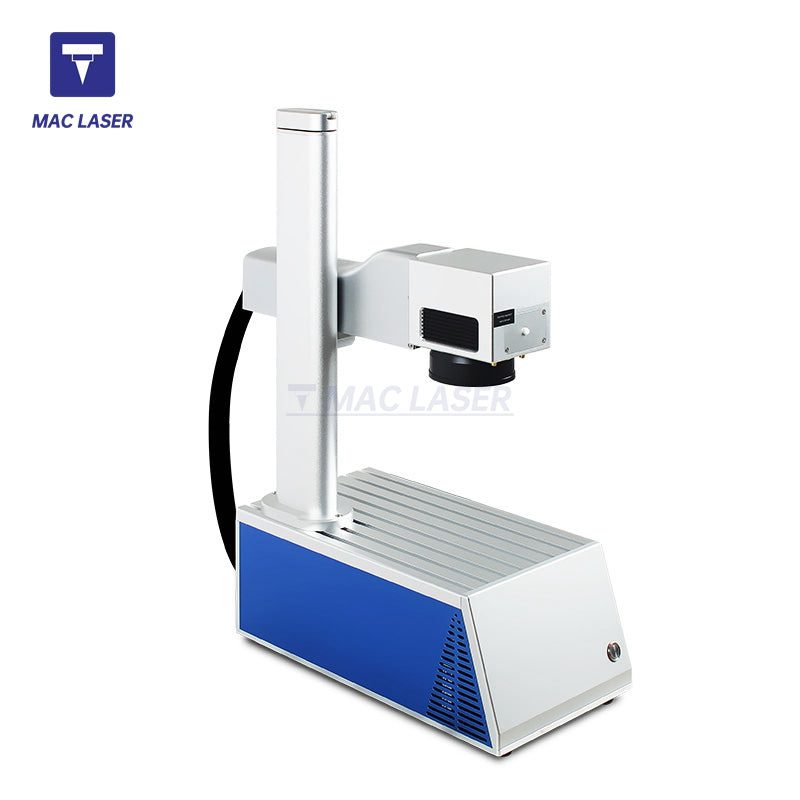

MZF-D MINI Laser Marking Machine

MZF-D MINI Laser Marking Machine can get high-quality and accurate markings on a variety of materials with ease. Perfect for industrial applications, this versatile and compact machine is easy to use and produces professional-quality markings. Order now and experience the precision and efficiency of advanced laser technology.



Description

Edit

ADVANCED LASER MARKING TECHNOLOGY

100% portable

Transport box, thickened and shockproof, handle design, more convenient transportation

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

High-Quality Marking Results

The MZF-D MINI Laser Marking Machine is a top-of-the-line device designed to produce high-quality and accurate marks on a variety of materials, including metal, plastic, and glass. This state-of-the-art machine uses advanced laser technology to create clear and crisp markings that are easy to read and long-lasting. With its precision and efficiency, this machine is perfect for industrial applications that require consistent and durable markings.

Compact Design and Easy to Use

The MZF-D MINI Laser Marking Machine is designed with ease of use in mind. Its compact size makes it easy to transport and install in any workspace, and its intuitive user interface ensures that even beginners can operate it with ease. This machine is equipped with a variety of features that make marking a breeze, including a high-precision marking head, adjustable marking depth, and customizable marking parameters. You’ll be able to produce professional-quality markings quickly and efficiently, without the need for extensive training or complicated set-up procedures.

Versatile Applications

The MZF-D MINI Laser Marking Machine is a versatile device that can be used in a variety of industries and applications. Its high-precision marking capabilities make it ideal for producing serial numbers, barcodes, logos, and other important information on products, components, and equipment. Whether you’re in the automotive, aerospace, medical, or electronics industry, this Compact laser marker is a valuable tool that can help you streamline your operations and enhance your productivity.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

Model seriesIntelligent mini laser marking machine
ModelMZF-20DMZF-30D
Laser parametersLaser source modelMFP-20X/20QSMFP-30X/30QS
Output Power18.5/20W30W
Beam quality M2≤1.4≤1.4
Pulse repetition frequency27-60 kHz30-60 kHz
Laser wavelength<3%
Output power stability1064±5 nm
Working life<3%
Engraving depthAbout 100,000 working hours (non-lifetime)
Optical propertiesMarking range100~150mm (range optional)
Engraving depth≤1mm (depending on power and time)
Engraving speed≤10000mm/s
Repeat accuracy±0.002
Minimum marking line width0. 1mm
Minimum character height0.15mm
Use environmentCooling wayBuilt-in air cooling
System power supply500W / 220V / 50Hz (110V can be connected)
Temperature humidity0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
Oil mist, condensationNot allowed
Other parametersSupport systemWindows operating system

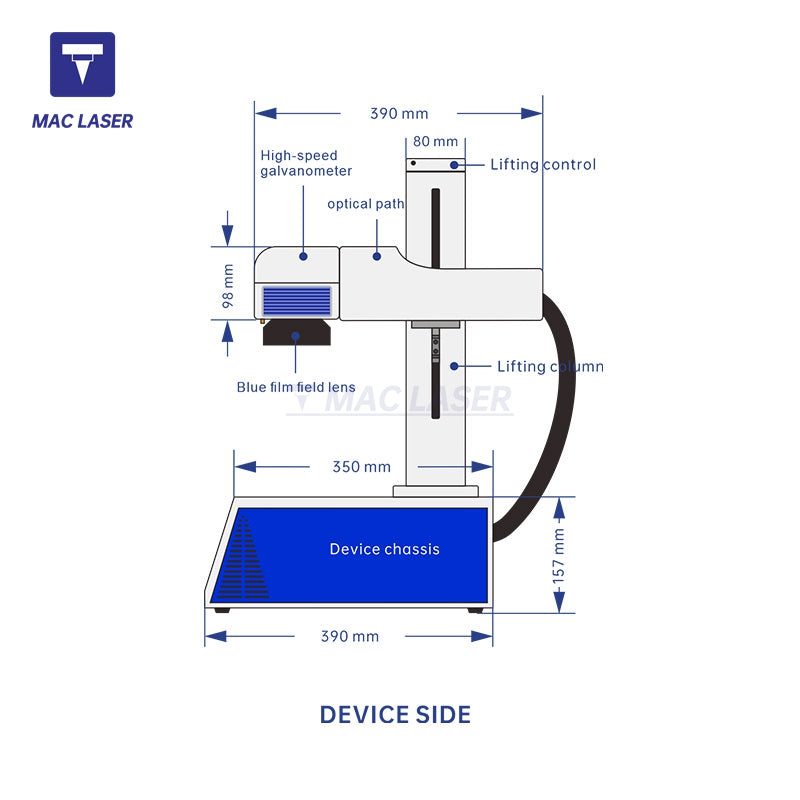

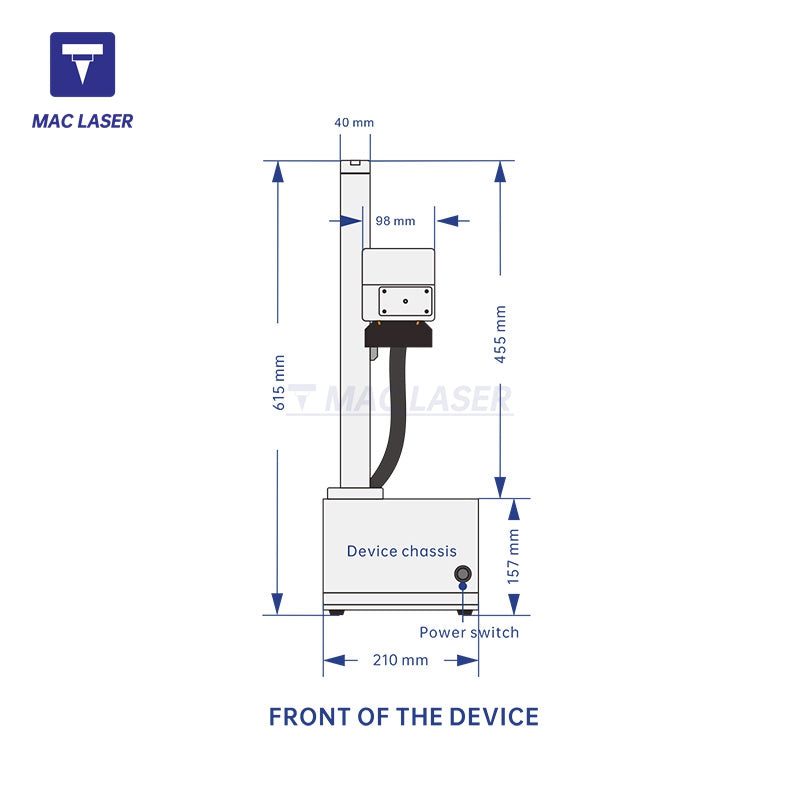

Dimensions390X210X615 mm
Packing size680X5500X270 mm
Total WeightAbout 20kg
Edit

INDUSTRIAL MARKING APPLICATIONS

MZF-D series mini laser marking machine belongs to desktop fifiber laser marking equipment, which is an

economical model specially developed by Mac Laser to meet the needs of simple, compact, flflexible and

convenient equipment. This model has the advantages of economical and affordable, high cost

performance (computer is not included, you need to confifigure your own computer to use), the whole

machine is small and easy to carry. It can easily meet most common laser marking applications.

The MZF-D series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal

materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS,

PVC, and PC+ABS.
